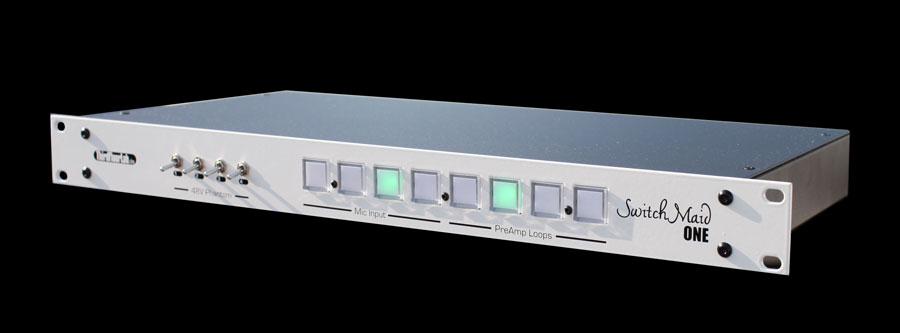

Microphone and PreAmp Switcher:

The SwitchMaid makes choosing the right microphone
and the matching preamp easier than ever.
4 microphone inputs with switchable 48V may be combined
with 4 preamp loops.

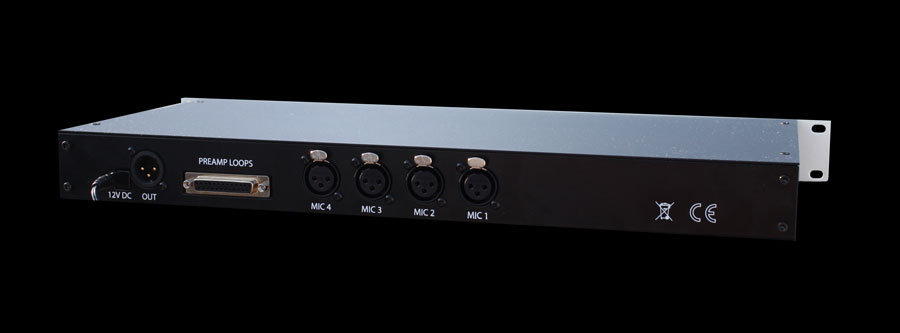

Preamp send and return are provided on tascam sub-d connectors.

* Fully passive signal path
* Neutrik XLR connectors
* High-quality switches
* gold contact relais
* unit ships with 12V DC power supply

Tascam SUB D-25 Connector (not included)
TASCAM 1 – PRE OUT 4
TASCAM 2 – PRE OUT 3
TASCAM 3 – PRE OUT 2
TASCAM 4 – PRE OUT 1
TASCAM 5 – PRE IN 4
TASCAM 6 – PRE IN 3
TASCAM 7 – PRE IN 2
TASCAM 8 – PRE IN 1

The Tascam SUB D-25 connector is not included, but four male/male adapters are provided.
You will need a Tascam SUB D-25 female cable.

Important: Your mic preamps must have their 48 V switched off – the 48 V phantom power comes from the SwitchMaid.

PRICE: 399 € plus 19% VAT (no VAT with VAT# or Export)

SHIPPING:
* Germany: 9.90 €
* EU: 29,- €
* Worldwide: 49,- €

To purchase, please contact us at: info@tool-house.com
